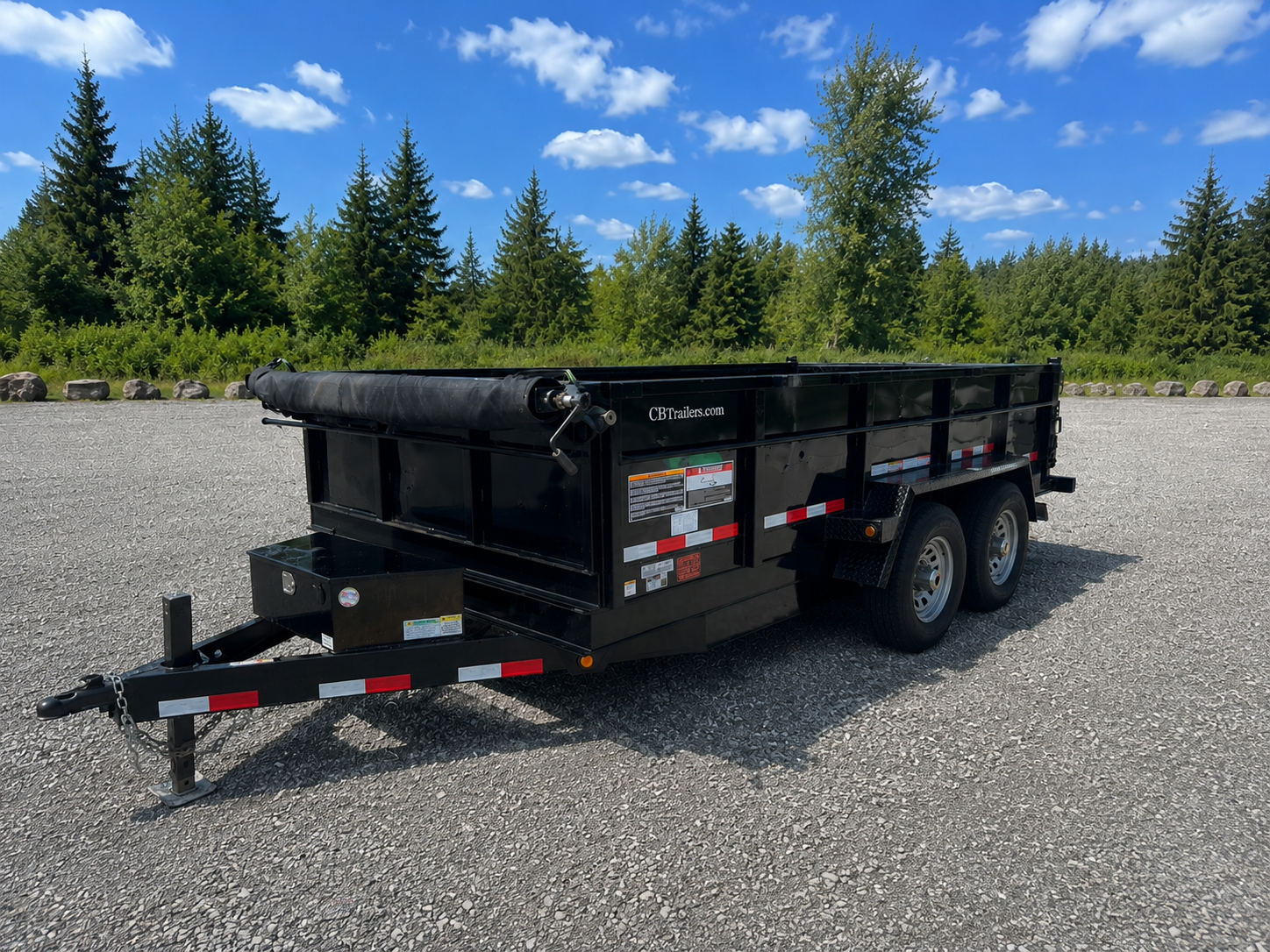

7' x 14' Dump Trailer Specifications

Trailer Dimensions
Weight Ratings
  • Trailer type: Dump Trailer
  • Bed size: 7 ft × 14 ft
  • Interior bed length: 14 ft
  • Interior bed width: 7 ft
  • Side wall height: 24”
  • GVWR: 14,000 lbs
  • Axle rating: Dual 7,000-lb axles
  • Payload: 10,000 lbs
Dump System
Trailer Features
  • Hydraulic dump system
  • Hydraulic power source: Battery-powered electric-over-hydraulic
  • Barn doors
  • Spreader gate
  • Tarp system
  • D-rings / tie-down points
  • Equipment ramps
Tow Vehicle Requirements

Requirements: Tow vehicle rated for 14,000 lbs, brake controller, 2-5/16" ball, and 7-way trailer connection.
